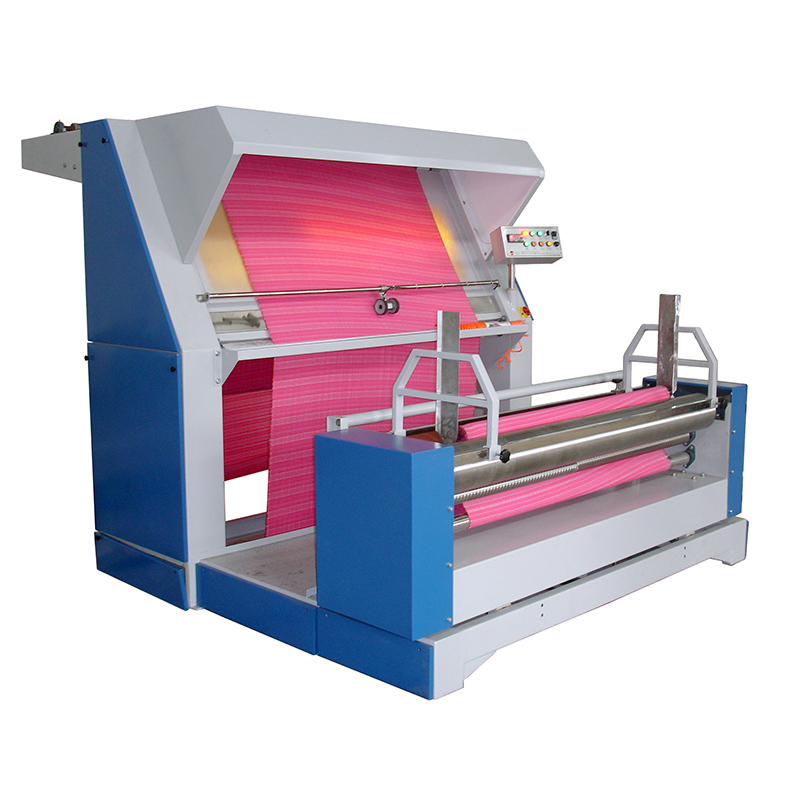

TI-AB Fabric Inspection & Rolling Machine

Technical features

1. It is applicable to the inspection of various woven fabrics, especially denim, and is rolled into rolls

    this machine suitable for inspection and rolling  all kinds of shuttle-woven cloth ,especially suitable for jean ；

2. According to the fabric type, a fabric tension adjusting device is provided; Adapt to the requirements of rolling tightness

    Rolling tension is adjustable according to deferent cloth categories ,suitable for rolling loose reels；

3. Infrared photoelectric oil pressure automatic edge alignment, and the roll cloth is neat

    infrared photoelectic automatic oil hydraulic edge aligning,cylidrical rolled cloth is in good trim。

4. The worktable is placed between the cloth inspection table and the cloth rolling device to facilitate inspection;

    operator platform placed between inspection  table and fabric winding device for easy operation)

    1. Equipped with electronic length meter, with accurate length measurement;

    2、 equipped with a electronic length counter,precisely counts cloth inspection；

Technical parameters

1. Working width: 1900mm

2. max. rolling dimension: 500mm

3. Motor power: 3KW

4. Power supply: 380V/50HZ

5. Mechanical speed: 0~60m/min;

6. External dimension 3020 X 2400 X 2400mm
